Product Specifications

--

Product Description

Overview

Quick Details

Place of Origin:Guangdong, China

Brand Name:Felicity

Model Number:FL-IVCM2024-60

Input Voltage:DC24V

Output Voltage:AC220V

Output Current:by load

Output Frequency:50/60HZ

Output Type:Single

Size:136*295*420mm

Type:DC/AC Inverters

Inverter Efficiency:≥95%

Certificate:CE ROHS, CE ISO9001

Warranty:1years

Weight:7.85kg

Product name:Solar Inverter

Application:Solar Power System Home

Display:LCD Display

Protection:Overload/Short Circuit

Inverter type:Off-grid Inverter

OEM:Accepted

Max. Charge Current:60A

Rated power:1600W

Battery type:Lead Acid \ Lithium \ Gel

Product Certification

EMC Certified. RoHS Certified.

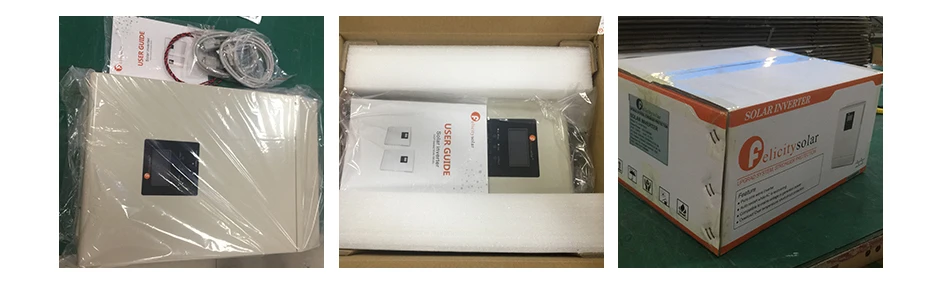

Packaging & Delivery

Selling Units:Single itemSingle package size:  35.5X42.5X20 cm Single gross weight: 8.400 kgPackage Type:Carton Packing Picture Example:

Lead Time :

Online Customization

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#a8aaac;font-family:Roboto;font-size:24px;color:#000;background-color:#b1b0b0;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;width:750px;height:502.10526315789474px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-3{margin-top:0;margin-left:0;width:750px;height:502px}#detail_decorate_root .magic-4{overflow:hidden;width:750px;height:543.9473684210526px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-5{margin-top:0;margin-left:0;width:750px;height:543.9473684210526px}#detail_decorate_root .magic-6{width:750px;border-collapse:collapse}#detail_decorate_root .magic-7{min-height:18px;padding:5px 10px;width:257px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-8{font-size:18px}#detail_decorate_root .magic-10{min-height:18px;padding:5px 10px;width:439px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-11{text-align:center}#detail_decorate_root .magic-12{font-size:18px;color:#ea9924;font-family:inherit;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-13{min-height:18px;padding:5px 10px;width:717px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-14{display:none}#detail_decorate_root .magic-15{min-height:18px;padding:5px 10px;width:437px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-16{min-height:18px;padding:5px 10px;width:258px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-17{min-height:18px;padding:5px 10px;width:438px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-18{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-19{overflow:hidden;width:750px;height:562.5px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-20{margin-top:0;margin-left:0;width:750px;height:562.5px}#detail_decorate_root .magic-21{overflow:hidden;width:750px;height:562.869822485207px;margin-top:0;margin-bottom:4px;margin-left:0;margin-right:0}#detail_decorate_root .magic-22{margin-top:18px;margin-left:1px;width:750px;height:562.869822485207px}#detail_decorate_root .magic-23{overflow:hidden;width:373px;height:279.75px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-24{margin-top:0;margin-left:0;width:373px;height:279.75px}#detail_decorate_root .magic-25{overflow:hidden;width:373px;height:279px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-26{margin-top:-3px;margin-left:-3px;width:496.8763250883393px;height:279px}#detail_decorate_root .magic-27{vertical-align:top}#detail_decorate_root .magic-28{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-29{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-30{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-31{overflow:hidden;width:750px;height:305.1948051948052px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-32{margin-top:0;margin-left:0;width:750px;height:305.1948051948052px}#detail_decorate_root .magic-33{overflow:hidden;width:750px;height:65.05102040816327px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-34{margin-top:0;margin-left:0;width:750px;height:65.05102040816327px}#detail_decorate_root .magic-35{min-height:18px;padding:5px 10px;width:104px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-36{font-size:14px}#detail_decorate_root .magic-37{min-height:18px;padding:5px 10px;width:89px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-38{min-height:18px;padding:5px 10px;width:125px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-39{min-height:18px;padding:5px 10px;width:342px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-40{min-height:18px;padding:5px 10px;width:90px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-41{min-height:18px;padding:5px 10px;width:124px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-42{min-height:18px;padding:5px 10px;width:344px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-43{min-height:18px;padding:5px 10px;width:105px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-44{min-height:18px;padding:5px 10px;width:105.2px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-45{min-height:18px;padding:5px 10px;width:489px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-46{text-align:left}#detail_decorate_root .magic-47{min-height:18px;padding:5px 10px;width:488px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-48{text-align:justify}#detail_decorate_root .magic-49{font-size:16px}#detail_decorate_root .magic-50{overflow:hidden;width:750px;height:350.625px;margin-top:0;margin-bottom:4px;margin-left:0;margin-right:0}#detail_decorate_root .magic-51{margin-top:0;margin-left:0;width:750px;height:350.625px}#detail_decorate_root .magic-52{overflow:hidden;width:373px;height:279.3784860557769px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-53{margin-top:0;margin-left:0;width:373px;height:279.3784860557769px}#detail_decorate_root .magic-54{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-55{margin-bottom:0}#detail_decorate_root .magic-56{position:relative;width:100%}Product Description

Advantages

• Pure sine wave build-in mppt charge controller inverter

• Configurable input voltage range for home appliances and personal computers via LCD setting

• Configurable battery charging current based on applications via LCD setting

• Configurable AC/Solar Charger priority via LCD setting

• Auto restart while AC is recovering

• 90-280V AC Widely input voltage.

• Compatible to mains voltage or generator power

• Overload/Over temperature/short circuit protection

• Smart battery charger design for optimized battery peroformance

• Parallel operation with up to 6units only available for 4KVA/5KVA

Details Images

Parameters

Customer Case

FAQ

1.How to choose suitable inverter?

If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and

capacitive loads, we recommend using pure sine wave power inverter.

2.How do I choose the size of the inverter?

Different types of load demand for power are different. You can view the load power values to determine the size of the power inverter.

3.How to calculate the load of working hours requires configuration of the battery size?

We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's

condition, the old batteries have some loss,so this is only a reference value:

Work hours = battery capacity * battery voltage * 0.8/load power (H= AH*V*0.8/W)

Payment Terms

We support wide range of secure & reliable payment methods like T/T, L/C, West Union, E-checking, Paypal and so on. Please choose your preferred payment method from those listed below.

Company Introduction

Felicity Solar Limited was founded in 2007, located in Guangzhou, China. We have specialized in the solar field for 7 years and made great achievements in overseas markets, For the past 7 years, we have developing rapidly and become a leading enterprise in this field.

Our major products are solar power system, solar street light and other applicable products such as solar rechargeable lamp, solar kit and so on. We enjoy our company with high technology, experienced engineer, skilled staff and high efficient production line. Taking Customers as Our Orientation, we have been providing perfect technical guidance and after- sales service.

To strengthen our competency, we improve the quality of our products by optimizing our production process. Thus, we have been approved by ISO9001, CE, ROHS, SONCAP and other authoritative international certification. Currently we have cooperated with partners from more than 40 countries and regional markets from Australia, Turkey, UAE, Singapore, Nigeria and so on and set up more than 10 branch offices in domestic and oversea markets. We are devoted to a low-carbon, energy-saving, environment-friendly life and hope that you can join us and contribute a better life for people in the world.

Company Main Products

Supply Ability

--

Packaging and Shipping

Lead time

--

Port

--

Packaging details

--
