China 3 Axle Gooseneck Hydraulic Lift Lowbed Semi Trailer
$13000
/piece
price excl.VAT
Negotiable
- Minimal order
- 100 pieces
Message Phone call
Product Specifications
Model Number
low bed semi trailer
Product Description
Overview
Quick Details
Use:Truck Trailer
Type:Semi-Trailer
Material:Steel
Certification:CE ADR
Size:13000*3000*1800mm
OE NO.:LJRH1338MJ3628692
Max Payload:100T
Place of Origin:Shandong, China
Brand Name:LUYI VEHICLE
Product name:Low Bed Semi Trailer
Suspension System:Mechanical Spring
Function:Transport Heavy Duty Equipment
Axle:13/16 Ton Fuwa/BPW/CIMC
Landing Gear:Standard 28Ton
Tire:11.00r20 12r22.5 315 385
Loading capacity:40-100 Tons
Brake System:Dual Line Braking System
King pin:2.0 Inch (50mm)/3.5 Inch (90mm)
Support leg:JOST Brand D200T
Supply Ability
Supply Ability: 100 Set/Sets per Month

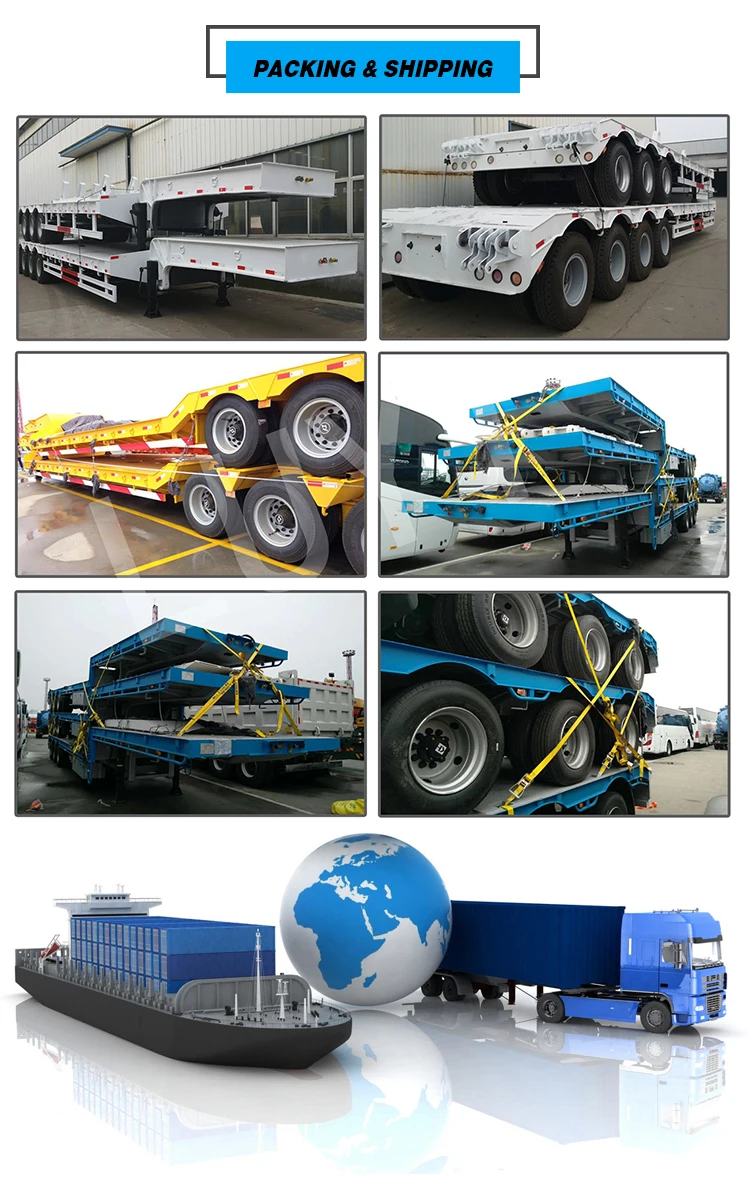

Packaging & Delivery
Packaging DetailsPACKING
Nude and wax, shipped in bulk cargo ship, flat deck or RO-RO
(1)Wax:
Do wax spray process to against the trailer body suffer seawater corrosion during shipping
(2)Package:
Stable fixing with steel wire,to protect the trailer during shipping
(3)Shipping:
Reliable logistic service from famous freight supplier makes transport process safely and promptly
LUYI Brand Rock body 30-40 cbm 3 axle end tipper truck and trailer tractor dump trailers for salePortChina main port Picture Example:
Lead Time :
| Quantity(Sets) | 1 - 1 | 2 - 10 | 11 - 30 | >30 |
| Est. Time(days) | 15 | 20 | 40 | To be negotiated |
Online Customization
Products Description
China Factory 3 Axle 80 Ton 100 Ton 120 Ton Gooseneck Detachable Lowbed Semi Trailer With Hydraulic Lift
LUYI low bed trailer is a very powerful low bed trailer, its strength and durability meet transportation needs.Lowbed trailers are made of high-strength steel, especially for the main stress points.The application of WABCO brake valve and other famous parts improves the reaction sensitivity and stability of the system and makes it more safe
Product Paramenters
Axle number | Two,Three or Four and more |
Axle specs. | FUWA ,YAHUA or BPW Brand |
Suspension | Mechanical or air supension (American or German) |
King Pin | JOST 2" or 3.5" traction pin |
Support legs | JOST, FUWA or YAHUA brand 28T |
Steel Spring | 8/8/8, 10/10/10, 12/12/12 pieces per axle |
Ladder | Manual or hydraulic automatic |
Electrical system | 24V, 7 pin socket, One set 7-core standard Cable |
Tire | 8.25R20/8.25R16/11.00R22.5/12.00R22.5/10.00R20/11.00R20/12.00R20 |
Number of Tire | 8 or 12 or 16 pieces |
Spare Tire Carriers | 2 pieces |
The material of Main beam | Height: 500mm, upper plate thickness is 20mm, middle plate thickness is 12, down plate thickness is 20mm; Material is Q345B Carbon Steel. |
Platform plate | 4/5/6/7 mm Diamond Plate |
Brake Chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TAIYUE brand); One piece of 45L air tanks |
Light | Tail lamp with turn signal, brake light & reflector, side lamp etc |
Tool box | 1 sets(waterproof type) |
Spare tire carrier | 1 sets(Patent type) |
Details Images
Powerful Engine
Hydraulic System
Line Axle
Front Loading
Strong Steel Plate
Detachable Gooseneck
Recommend Products
Company Profile
Shandong Luyi Vehicle Co., Ltd. Is a designated automobile manufacturer approved by the ministry of industry and information technology of the People's Republic of China to manufacture various semi-trailers and commercial vehicles.Main product are Lowbed ,flatbed ,Cement tanker,Tanker,Tipper,Cargo trailer,Port trailer,Gas tanker,New And Used dump truck ,tractor truck,etc.
Luyi Vehicle has a first-class CNC cutting machine, automatic welding machine; Large bending machine, jigsaw machine, can machine, tank automatic welding turning machine, whole car through shot blasting machine, Swiss four-wheel positioning and other production and various testing equipment.
Certifications
FAQ
1.Q: What kind of payment do you accept? A: We accept T/T and L/C at most. If you want to use others payment, contact me for more info. 2.Q: What's your delivery time? A: It depends on the products. Low bed trailer, Container trailer, skeleton trailer, side wall trailer:10-15 days Fuel tanker trailer, bulk cement trailer 20 days Special trailer, like detachable gooseneck trailer, hydraulic modular trailer 25 working days 3.Q: What's warranty time? A: The ordinary semitrailer is 10 years, and the heavy duty trailer, special trailer and tanker warranty time is 8 years. 4.Q: What's your after-sale service? A: We provide after-sale service for lifetime, and the supply of spare parts for lifetime.
Supply Ability
--
Packaging and Shipping
Lead time
--
Port
--
Packaging details
--
